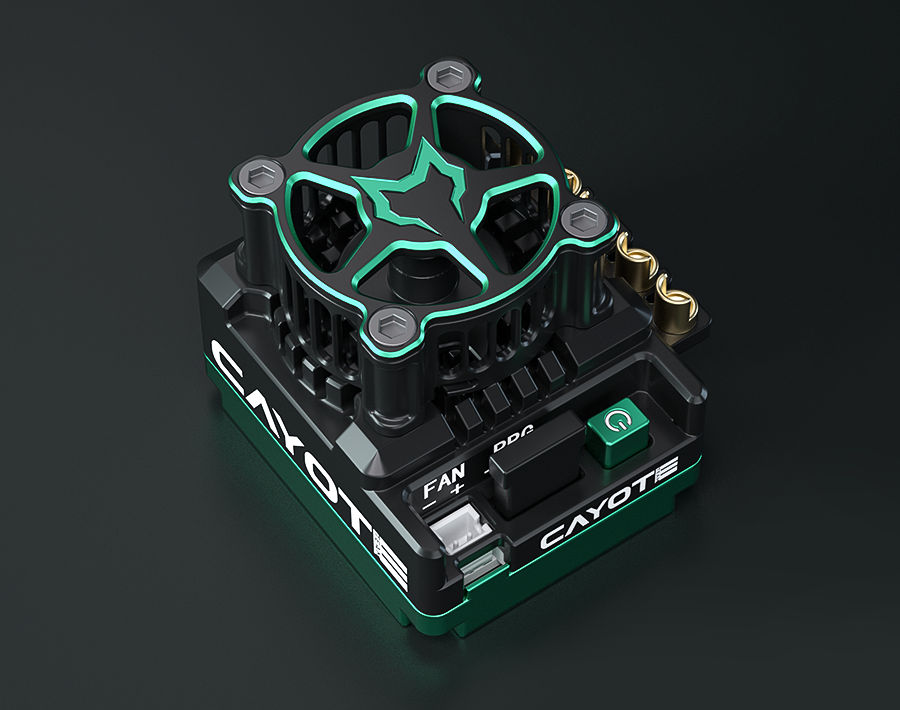

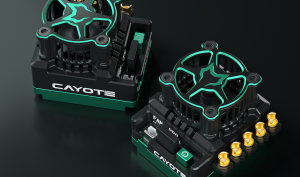

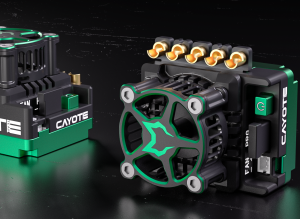

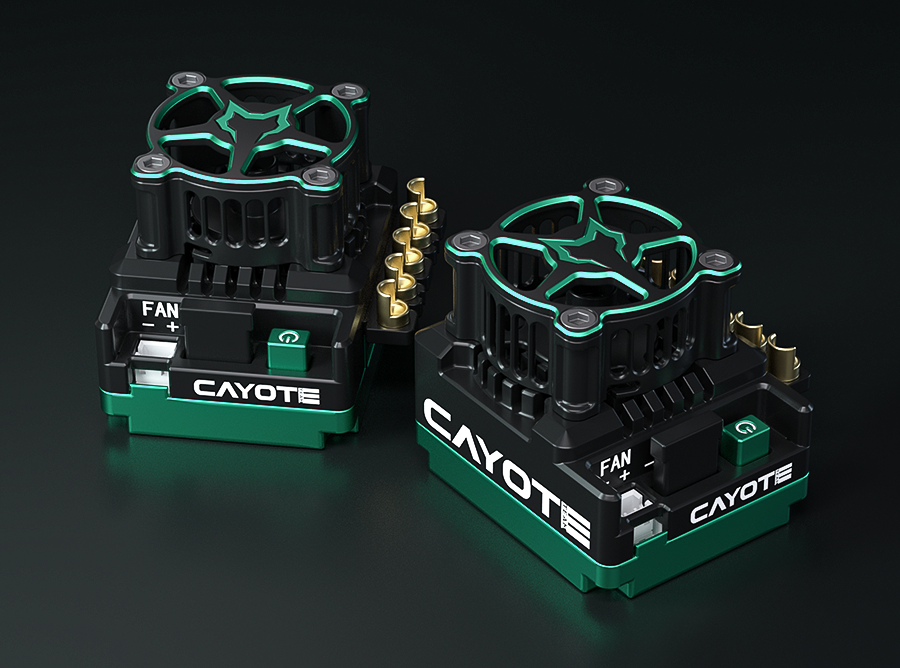

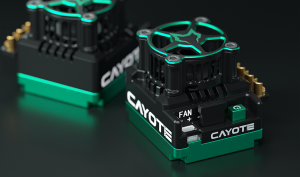

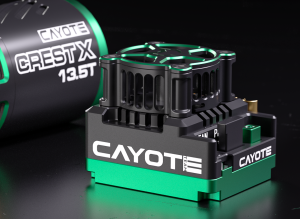

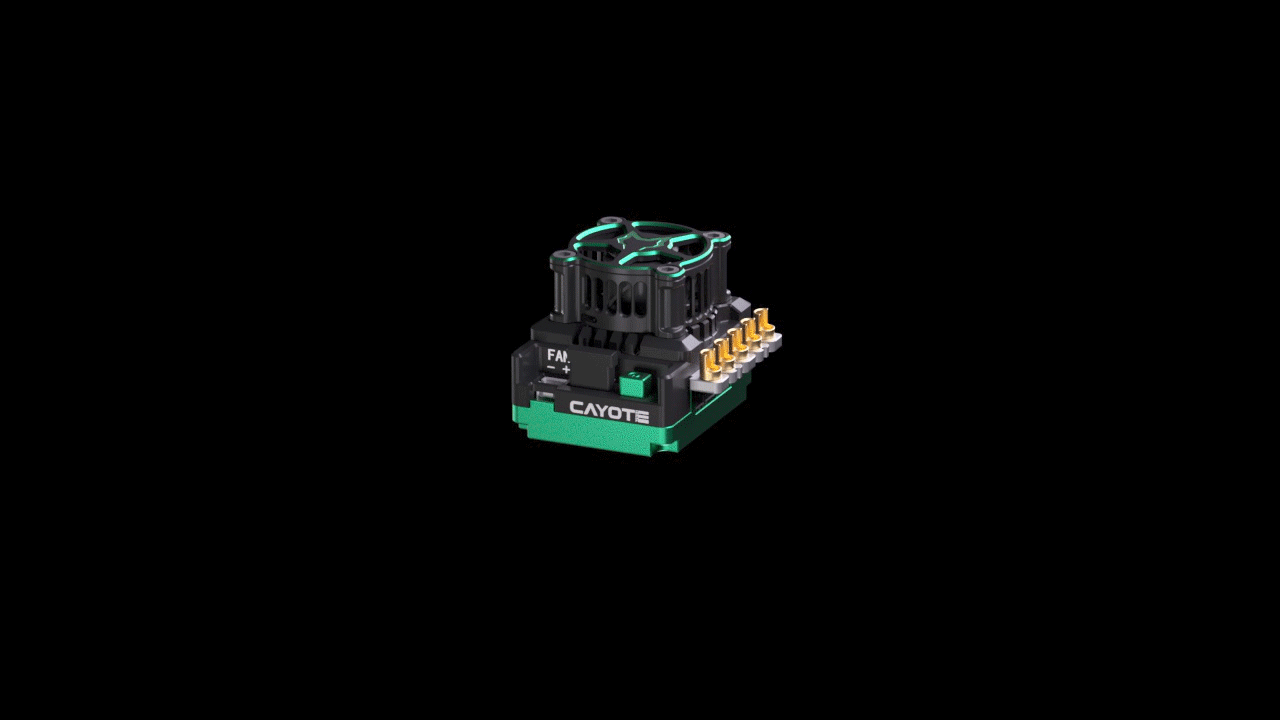

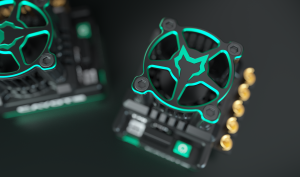

Crest X ESC
Unleash Ultimate Performance
Cayote Crest X ESC delivers high performance and reliable current transmission, ensuring your RC vehicles run smoothly and efficiently. This ESC features an advanced cooling system and a variety of functions, combining smart technology with user-friendly operation. Pair it with Cayote motor and battery for best performance.
Product Core Tech
Super Large 48-degree Boost & Turbo Timing
Increased power output and optimized motor efficiency.
Offline Data Recording
Track ESC’s performance, lets you make informed decisions.
Over 33 Adjustable Parameters
Supports various power and drive modes.
FORCE BE UNIFIED
Cayote Crest X ESC delivers high performance and reliable current transmission, ensuring your RC vehicles run smoothly and efficiently. This ESC features an advanced cooling system and a variety of functions, combining smart technology with user-friendly operation. Pair it with Cayote motor and battery for best performance.
Increased power output and optimized motor efficiency.
Track ESC’s performance, lets you make informed decisions.
Supports various power and drive modes.
FORCE BE UNIFIED
Crest X ESC

Support of 6V/7.4V adjustable BEC to adapt to various high power BEC.

Only enabled in forward with brake and forward and reverse with brake modes.

Low voltage protection, ESC and motor overheat protection.
Crest X ESC
- Scale: 1/10
- Mode:Sensor/Sensorless
- Cont. Current: 160A
- Peak Current: 1100A
- Battery: 2S Lipo
- BEC Output Voltage: 6.0/7.4V
- BEC Output Current: 5A Cont. / 8A Peak
- Firmware Upgrade: Supported
- Data Recording: Extreme value, Real-time Data
- Size: 37.9×31.4x30mm
- Weight: 55g
Compatibility
- Motor: 1/10th TC≥4.5T;1/10th Off Road≥5.5T
- Vehicle: 1/10th TC; 1/10th Off Road/Etc.
Wiring and Cooling

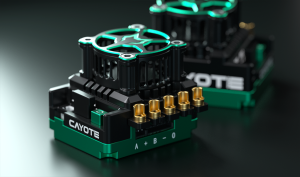

- Output Wires: Black-13AWG-180MM*3
- Input Wires: Red-13AWG-180MM*1
Black-13AWG-180MM*1 - Cooling Fan: 25x25x10mm, 5-8.4V BEC
ESC Programming Via
- Xlink Program Box Compatible
- B-Tune Connect (Optional)
- Internal Program (Port)(APP Control)
