1/10 WATERPROOF BRUSHED ESC
FINE-TUNE FREELY · STAY IN CONTROL
Four Driving Modes
More Ways to Crawl
OFFERS FOUR DRIVING MODES
Trail crawling, tight turns, getting unstuck — the fun is in every decision and adjustment. Rumble 80 offers four driving modes, so you can choose what feels right and drive your way.
MODE 1
Forward with Brake
MODE 2
Forward/Reverse with Brake
MODE 3
Direct Forward and Reverse
MODE 4
Real Car Mode
MODE 1
Forward with Brake
MODE 2
Forward/Reverse with Brake
MODE 3
Direct Forward and Reverse
MODE 4
Real Car Mode

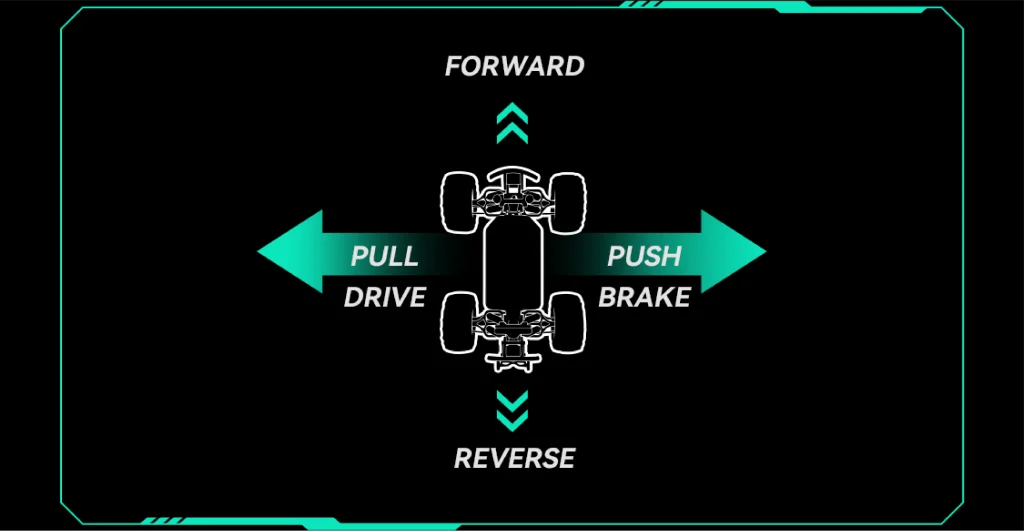

Real Car Mode
Use an AUX channel to switch between forward and reverse. Pull the trigger to drive and push it to brake, regardless of the selected direction. This makes direction control more intuitive and closer to the feel of a real car.
Real Car Mode
Use an AUX channel to switch between forward and reverse. Pull the trigger to drive and push it to brake, regardless of the selected direction This makes direction control more intuitive and closer to the feel of a real car.
Tune for Any Terrain
Find Your Ideal Feel
Drag Brake Force
It can also be adjusted in real time from the transmitter, so you can quickly adapt to changing slopes and terrain without stopping to reprogram the ESC.
Motor Polarity Swap
If motor polarity is reversed during installation, switch motor direction through settings without rewiring cables.
Drag Brake Force
It can also be adjusted in real time from the transmitter, so you can quickly adapt to changing slopes and terrain without stopping to reprogram the ESC.
Motor Polarity Swap
If motor polarity is reversed during installation, switch motor direction through settings without rewiring cables.
16 PROGRAMMABLE PARAMETERS
With Qlink / Xlink support, you can fine-tune power, braking and throttle response to suit your driving style across different terrain.
Running Mode
Battery Type
Cutoff Voltage
Initial Throttle Force
Max. Forward Force
Max. Reverse Force
Max. Brake Force
Initial Brake Force
Drag Brake Force
Drag Brake Rate
Neutral Range
Punch Rate
PWM Drive Freq
BEC Voltage
DEO Mode
Motor Polarity Swap
Three BEC Voltage Options
More Freedom to Upgrade
Different servos and onboard electronics need different levels of power.
Three BEC Voltage Options
More Freedom to Upgrade
Different servos and onboard electronics need different levels of power.
OFFERS SELECTABLE
BEC Voltage
6V / 7.4V / 8.4V
Continuous
4A
Peak
8A
OFFERS SELECTABLE
BEC Voltage
6V / 7.4V / 8.4V
Continuous
4A
Peak
8A
BUILD & UPGRADE WITH EASE
From standard servos to higher-voltage upgrades, you have more freedom to build and upgrade your setup.
Servo
Receiver
Accessories
BUILD & UPGRADE WITH EASE
From standard servos to higher-voltage upgrades, you have more freedom to build and upgrade your setup.
Servo
Receiver
Accessories
Multiple Protections
Explore More Terrain
IP67 Protection
Built for outdoor crawling, Rumble 80 features a fully sealed design with IP67 protection.
Note:
The IP67 protection rating was verified under controlled laboratory conditions according to GB/T 4208-2017 (China) and IEC 60529 (International) standards. Protection performance may decrease over time due to wear, impact, or aging. Do not use the product for prolonged submersion.
protection functions
Built-in protection functions include low-voltage, over-voltage, overheat, and throttle signal loss protection.
low-voltage protection
over-voltage protection
throttle signal loss protection
overheat protection
IP67 Protection
Built for outdoor crawling, Rumble 80 features a fully sealed design with IP67 protection.
Note:
The IP67 protection rating was verified under controlled laboratory conditions according to GB/T 4208-2017 (China) and IEC 60529 (International) standards. Protection performance may decrease over time due to wear, impact, or aging. Do not use the product for prolonged submersion.
protection functions
Built-in protection functions include low-voltage, over-voltage, overheat, and throttle signal loss protection.
low-voltage protection
over-voltage protection
throttle signal loss protection
overheat protection
fan mounting point
A fan mounting point is also available for additional cooling during long climbs and technical sections.
fan mounting point
A fan mounting point is also available for additional cooling during long climbs and technical sections.
