EVO Power & EVO Precision
The CREST X EVO sets a new standard for the race winning Cayote CrestX line of ESC products. The Crest X was initially designed for professional racing competition, and adding all our worldwide racing experience feedback from our high performance top driver team, the CREST X EVO is the new ultimate tool for boosting your track performance.
Updated new power modules with enhanced APP controlled data logging systems, while integrating redesigned and upgraded control boards, our newest levels of exceptional power and brake control were reached.
CREST X EVO
Precision in Details Power in Action

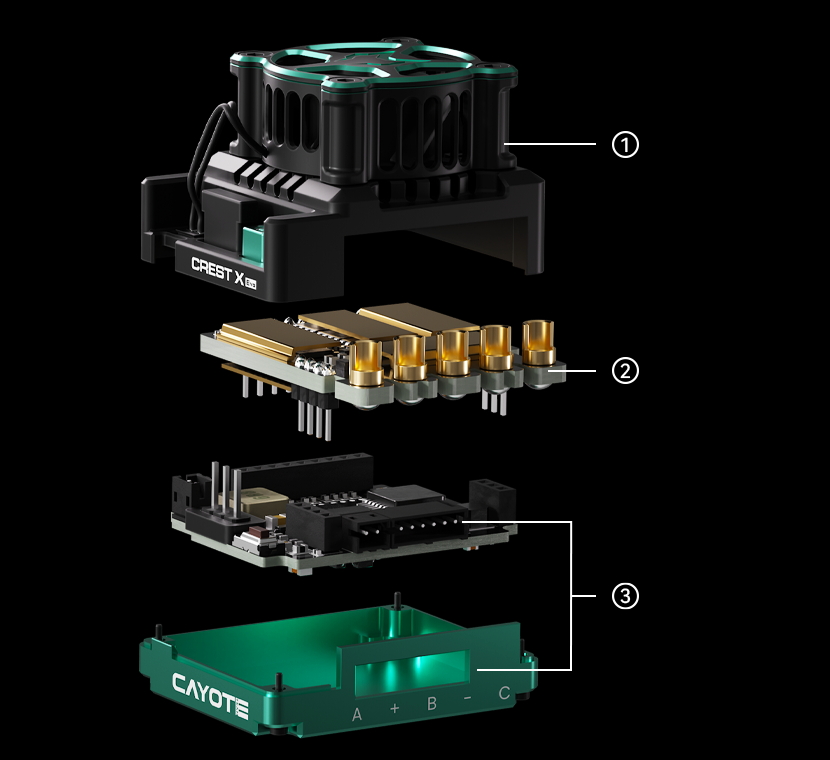

① The metal-framed fan with four vents ensures optimal airflow.
② Features advanced reverse polarity protection to prevent damage from incorrect power connections.
③ Includes an external switch interface for easy wiring and customizable layouts.
CREST X EVO

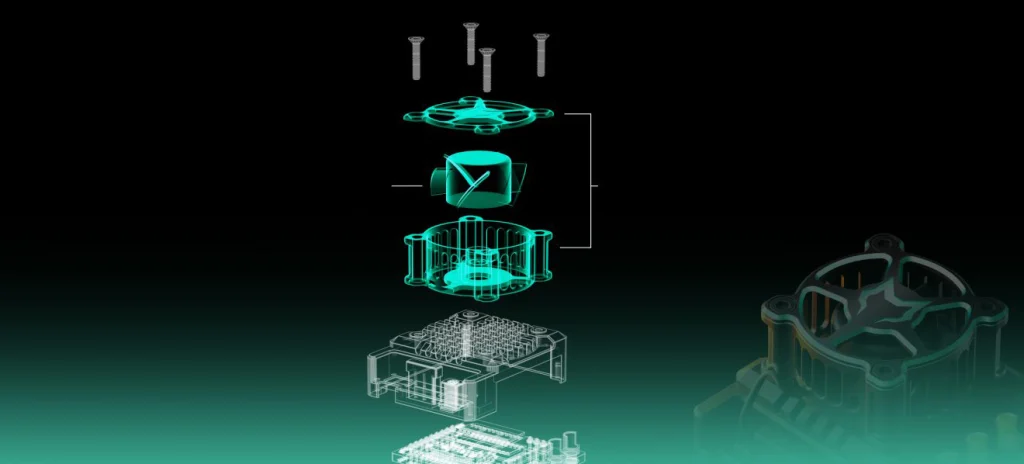

Highly Reliable Cooling System
Featuring a metal-framed fan with a four-vent design for optimal airflow, it efficiently expels fine particles to keep the system clean and unobstructed.
The high-speed fan combined with large air volume ensures stable and effective cooling, maintaining optimal CREST X EVO performance at all times.
CREST X EVO
Exceptional Performance
and Processor Computing Power

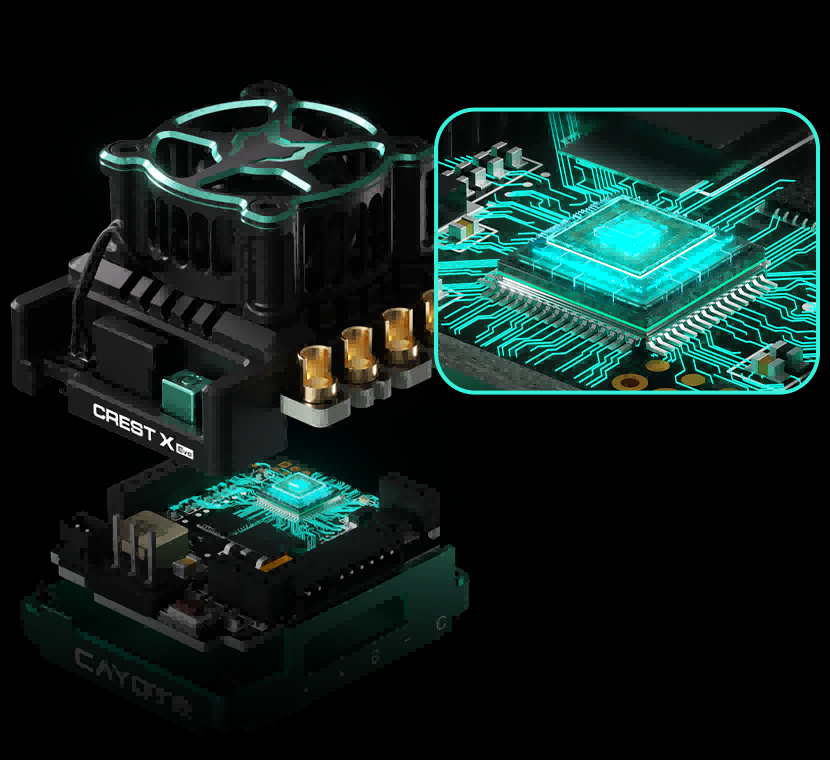

The CREST X EVO is equipped with a high-performance ARM architecture, featuring a 32-bit Cortex-M4 core processor with a clock speed of up to 108MHz.
Compared to the CREST X the EVO can therefore achieve a 5 times higher computing power, enabling faster processing of complex calculations and therefore increasing acceleration and braking performance. This significant performance boost ensures stronger ability for high-speed response and multi-task controls, as well provides enhanced reliability and precision in high demand power applications.
CREST X EVO
Exceptional Performance
and Processor Computing Power
The CREST X EVO is equipped with a high-performance ARM architecture, featuring a 32-bit Cortex-M4 core processor with a clock speed of up to 108MHz.
Compared to the CREST X the EVO can therefore achieve a 5 times higher computing power, enabling faster processing of complex calculations and therefore increasing acceleration and braking performance. This significant performance boost ensures stronger ability for high-speed response and multi-task controls, as well provides enhanced reliability and precision in high demand power applications.
Multiple Protection Features
The CREST X EVO is equipped with multiple reliability and protection features, ensuring safe and stable performance. Together, these features provide comprehensive safety and ensure optimal performance under various conditions.
Low Voltage Protection
Over Temperature Protection
Stall Protection
Fail-Safe Protection

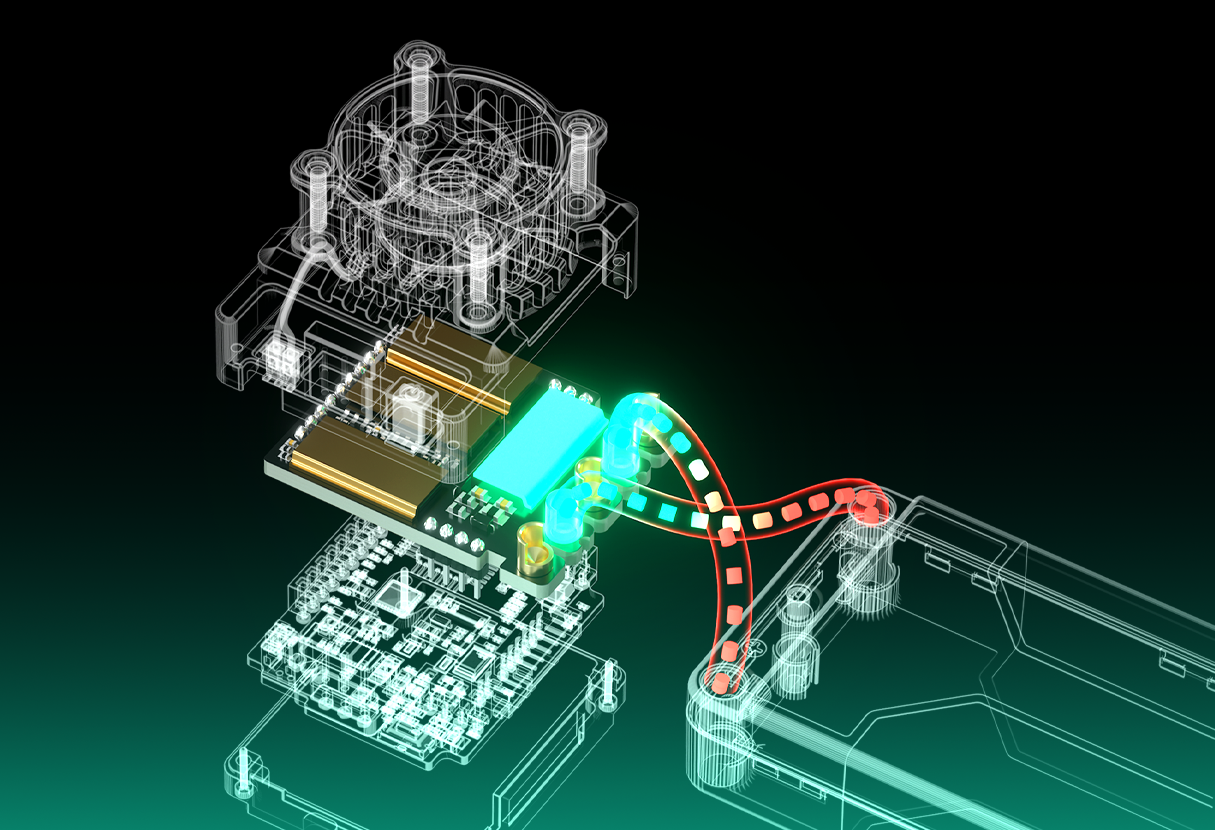

The CREST X EVO features advanced reverse polarity protection to prevent damage from incorrect power connections. It automatically detects polarity and disconnects power if reversed, protecting the ESC and ensuring long-term stability. (Note: Reverse polarity may damage the external capacitor pack.)
Reverse Polarity Protection
Unlock Wireless Control

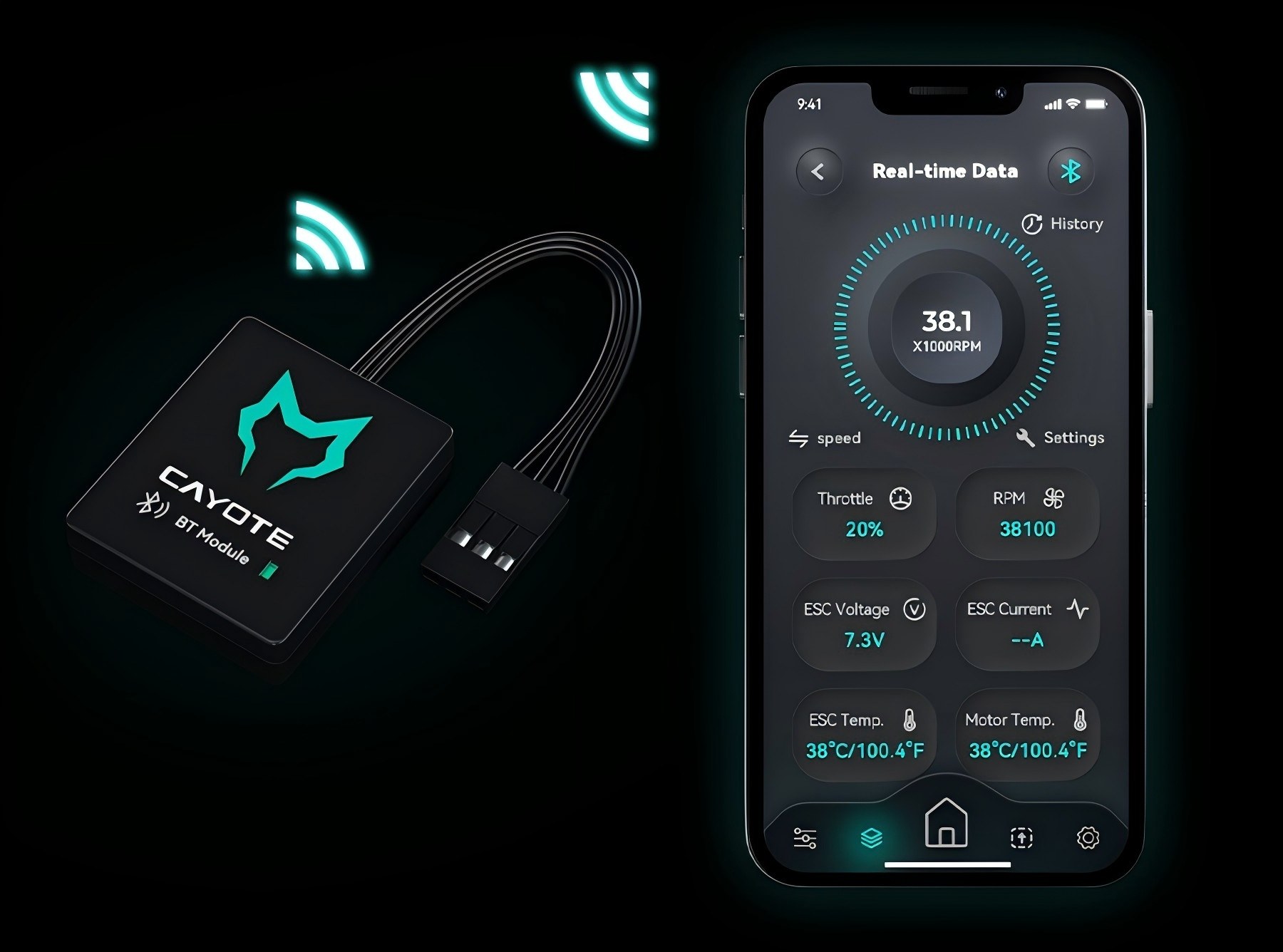

Once the CREST X EVO is connected to the BTUNE module, a wireless connection can be established between your mobile device and the ESC. This allows for easy parameter adjustment, data reading, and firmware updates via the mobile app—convenient and user-friendly.
*”BTUNE is BQB certified for Bluetooth compliance. (BTune Module sku：CACBM01 （Sold separately）)
Unlock Wireless Control with the BTUNE

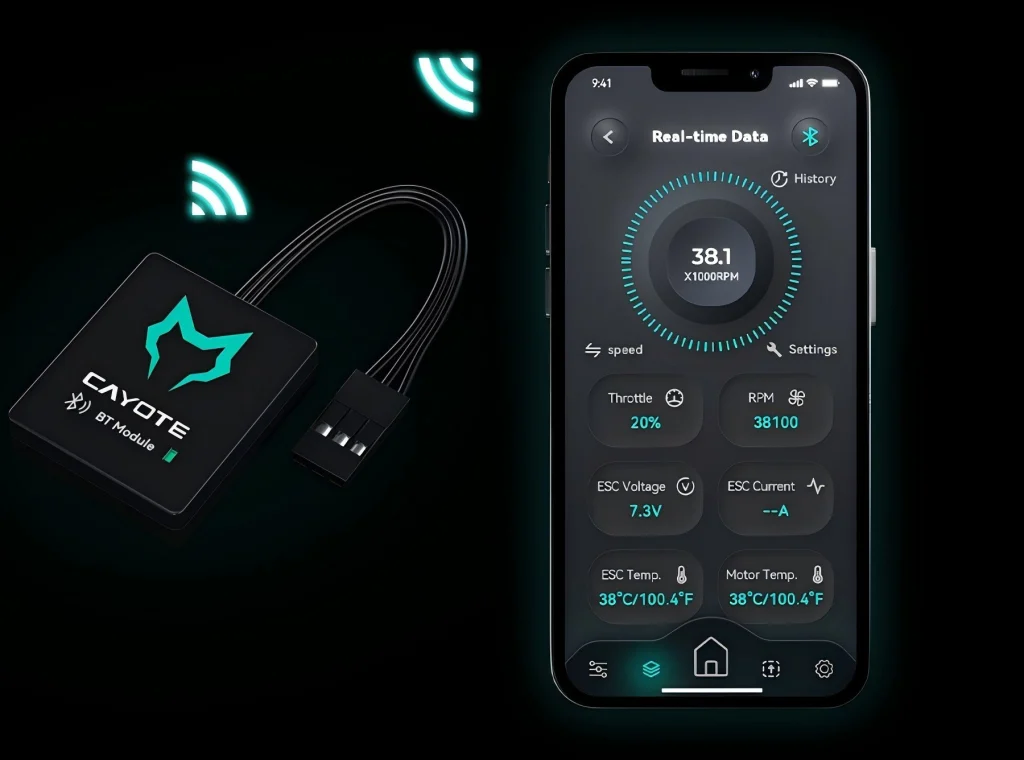

Once the CREST X EVO is connected to the BTUNE module, a wireless connection can be established between your mobile device and the ESC. This allows for easy parameter adjustment, data reading, and firmware updates via the mobile app—convenient and user-friendly.
*”BTUNE is BQB certified for Bluetooth compliance. (BTune Module sku：CACBM01 （Sold separately）)
1/10 RACING ESC
Speed-up Revolution
Under the same parameters, burst power is increased by
While launch acceleration and brake control is improved up to

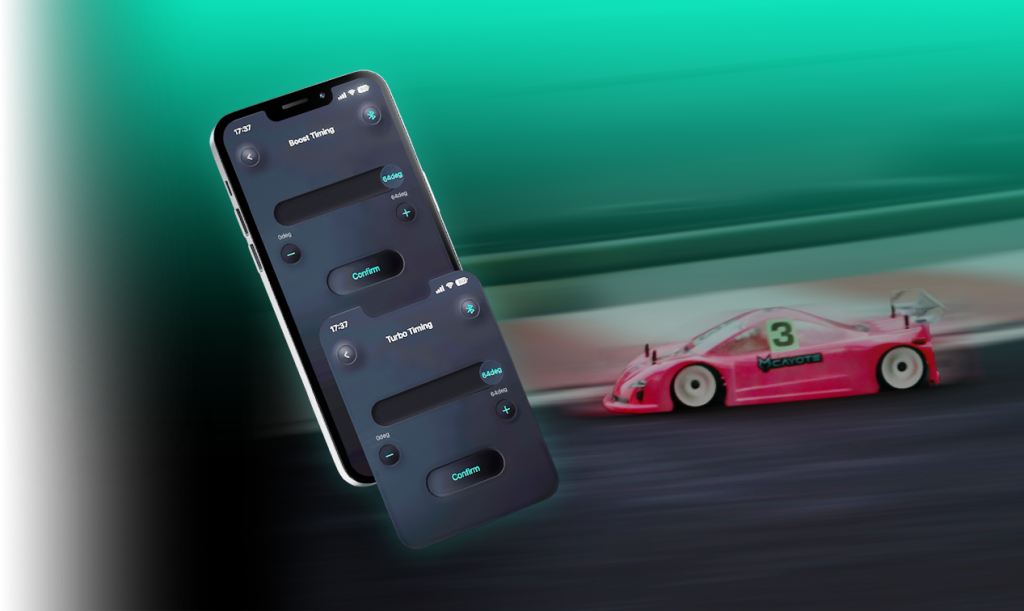

With up to 64 degrees of Boost and Turbo timing, the all new EVO delivers instant acceleration, making every launch lightning-fast and providing unmatched power support. Compared to the previous CREST X model, the EVO features superior processing speed, finer control, and enhanced burst performance.
Speed-up Revolution
Under the same parameters, burst power is increased by
While launch acceleration and brake control is improved up to
With up to 64 degrees of Boost and Turbo timing, the all new EVO delivers instant acceleration, making every launch lightning-fast and providing unmatched power support. Compared to the previous CREST X model, the EVO features superior processing speed, finer control, and enhanced burst performance.

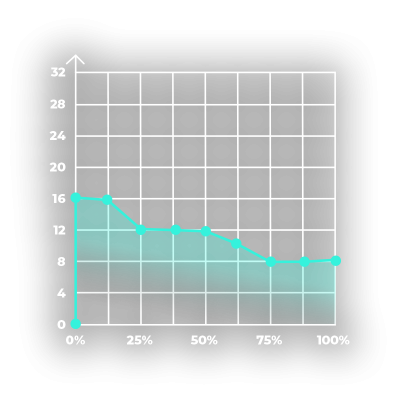

Improved Throttle and Brake PWM Frequency Adjustment precision
The Crest X EVO offers a highly APP customizable experience with its adjustable PWM frequency for both throttle and brake. This feature allows users to fine-tune the throttle response and braking power to meet specific driving preferences and track conditions in even the smallest details, as well optimizing setup functionality.
Improved Throttle and Brake PWM Frequency Adjustment precision
The Crest X EVO offers a highly APP customizable experience with its adjustable PWM frequency for both throttle and brake. This feature allows users to fine-tune the throttle response and braking power to meet specific driving preferences and track conditions in even the smallest details, as well optimizing setup functionality.
CREST X EVO Specs
Continuous/Peak Current
160A / 1100A
BEC Output
Ultra-stable switch Vregulation 6V/7.4V; cont. current 6A/8A peak
Support Vehicle Type
1/10th TC; 1/10th Off Road/Etc.
Dimension
37.9 x 37.8 x 30mm (LxWxH)
Weight
55g
Cooling Fan
25x25x10mm, 6-7.4V BEC
Basic Information
Compatibility
- Motor: 1/10th TC≥4.5T；1/10th Off Road≥5.5T
- Motor Mode: Sensored and Sensorless Brushless Motors
- Battery: 2S LiPo
Wire Gauge
- Output Wires: Black-13AWG-180MM*3
- Input Wires: Red-13AWG-180MM*1
Black-13AWG-180MM*1
ESC Programming Via
- Xlink Program Box Compatible
- B-Tune Connect (Optional)
- Internal Program (Port)(APP Control)
