Linear Power Response
The Team Cayote CREST Modi competion motor ensures smooth and accurate performance with its exceptional linear output and ultra precise power response. It maintains consistency between input and output signals during both acceleration and deceleration, preventing stutters or glitches. The built-in high-precision Hall sensors and a precisions balanced magnet rotor enhance stable power across a very wide torque range, maintaining control sensitivity and precision power demands of professional racing.
CREST Modi Motor

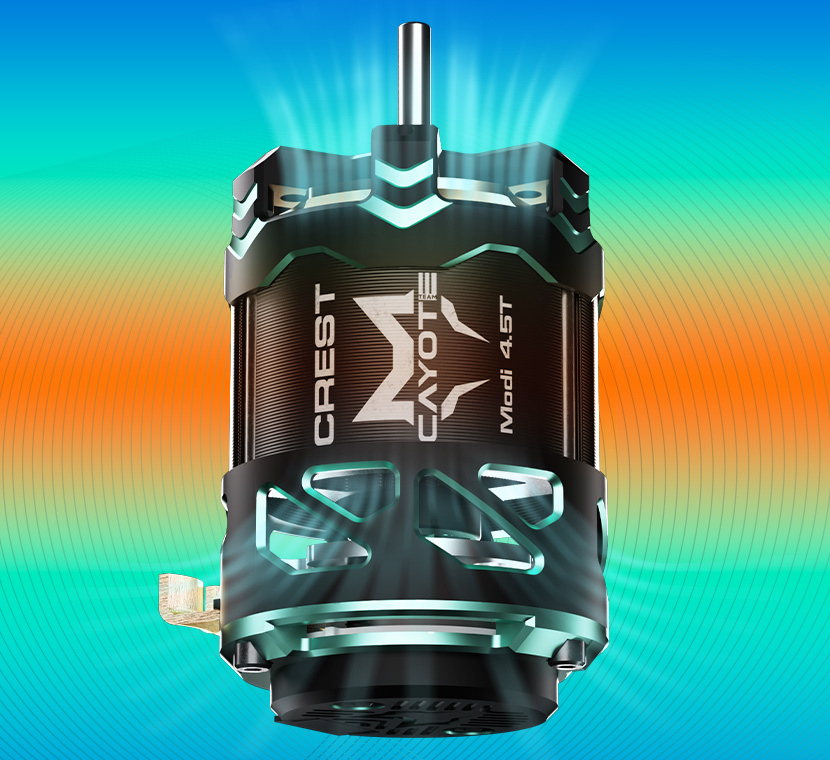

Innovative Cooling Design
The innovative cooling design with large ventilation holes on both end caps.
Its center structure exposes the stator core directly to incoming air for optimal cooling.
This arrangement minimizes heat buildup and maintains a stable operating temperature even under extreme use.
The efficient heat dissipation enhances durability and ensures consistent power output in high-load, high-temperature environments.
CREST Modi Motor
Innovative Cooling Design
The innovative cooling design with large ventilation holes on both end caps.
Its center structure exposes the stator core directly to incoming air for optimal cooling. This arrangement minimizes heat buildup and maintains a stable operating temperature even under extreme use.
The efficient heat dissipation enhances durability and ensures consistent power output in high-load, high-temperature environments.

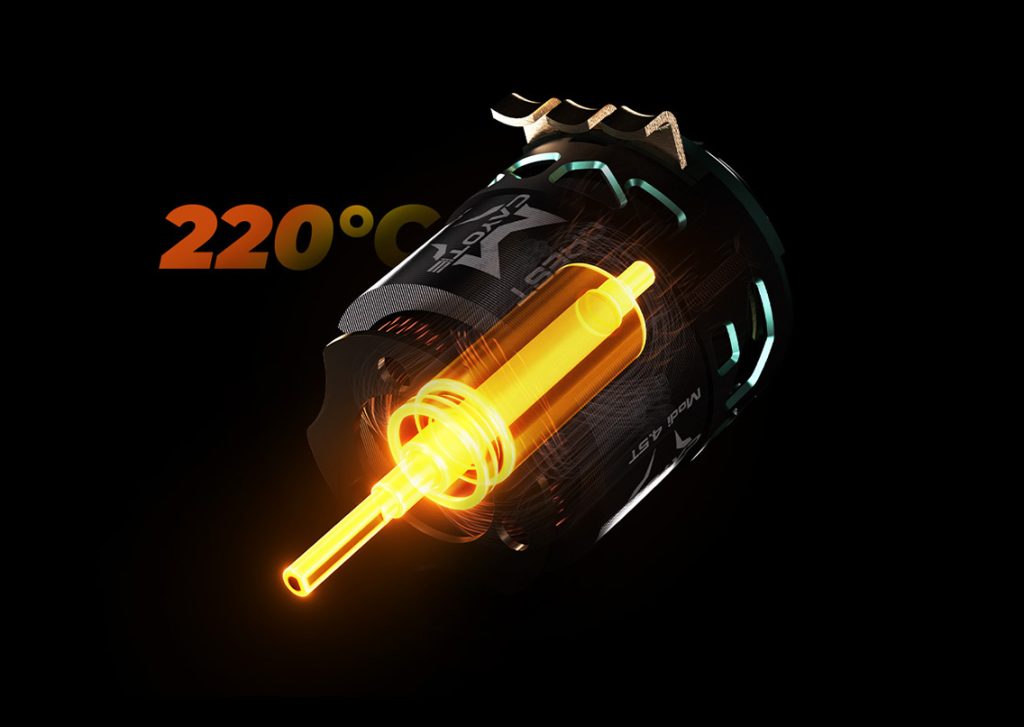

High-Temperature
Resistant Rotor Design
The Modi features a high temp resistant magnet built to withstand temperatures up to 220°C. Even under high-load high-temperature conditions, the rotor resists heat-induced cracks, ensuring reliable performance and durability. This design ensures consistency no matter the conditions, allowing you to push the limits with full confidence.
Convenient Disassembly
Effortless Maintenance
The innovative rebuildeable design makes maintenance and cleaning quick and easy. This user-friendly feature ensures simple, regular checks, reducing malfunctions and keeping your motor at peak performance longer. Spend more time on the track, while enjoying consistent power and reliability.
Specification
| Model(Turns) | 3.5T | 4.0T | 4.5T | 5.0T | 5.5T | 6.0T | 6.5T | 7.0T | 7.5T |
|---|---|---|---|---|---|---|---|---|---|
| KV(No-load) | 9500 | 8452 | 7540 | 7050 | 6160 | 5800 | 5280 | 5060 | 4620 |
| LiPo | 1S | 1S | 2S | 2S | 2S | 2S | 2S | 2S | 2S |
| IR(mΩ) | 1.8 | 2.4 | 2.8 | 3.5 | 4.2 | 4.7 | 5.5 | 6.3 | 7.6 |
|
No-load
Current(A) |
8.5 | 8.4 | 7.6 | 7.7 | 6.2 | 6.3 | 5.1 | 5.2 | 4.3 |
| Max. Output | 470 | 465 | 460 | 450 | 430 | 420 | 410 | 370 | 350 |
| Current @Max.
Output Power(A) |
130 | 128 | 125 | 121 | 116 | 114 | 114 | 109 | 104 |
| Diameter/
Length(mm) |
Φ=35.8mm L=51.9mm | ||||||||
| Axel Diameter/
Length(mm) |
Φ=3.175mm L=14.1mm | ||||||||
| Standard Rotor | Φ5-12.1 | Φ5-12.1 | Φ5-12.3 | Φ5-12.3 | Φ5-12.5 | Φ5-12.5 | Φ5-12.5 | Φ5-12.5 | Φ5-12.5 |
| Poles | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Weight(g) | 163.0 | 163.0 | 163.5 | 165.0 | 165.0 | 166.0 | 165.5 | 164.5 | 164.0 |
