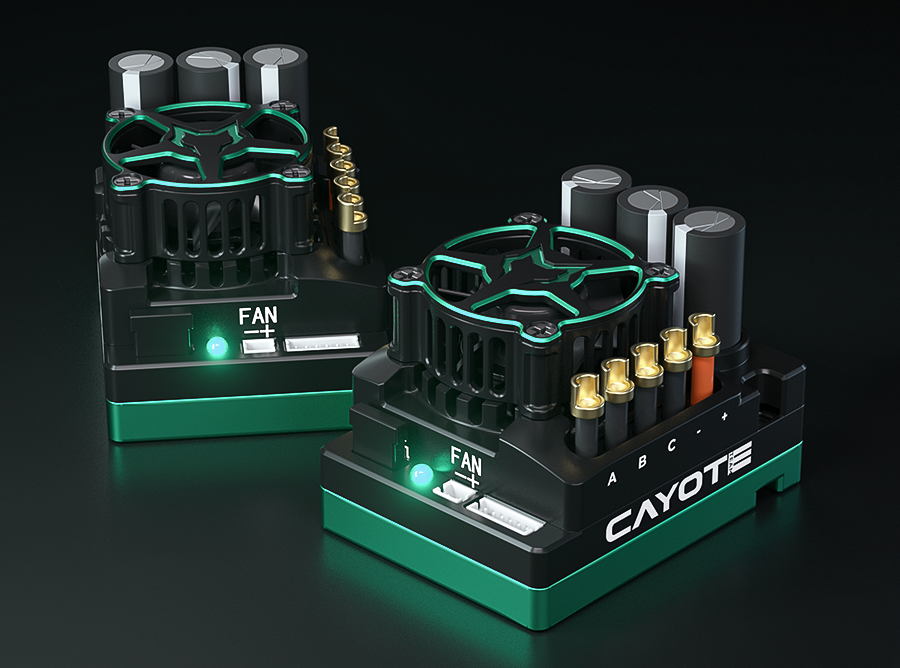

1/8 ESC
Crest 8
Brushless
Crest 8
Brushless
1/8 ESC
Crest 8

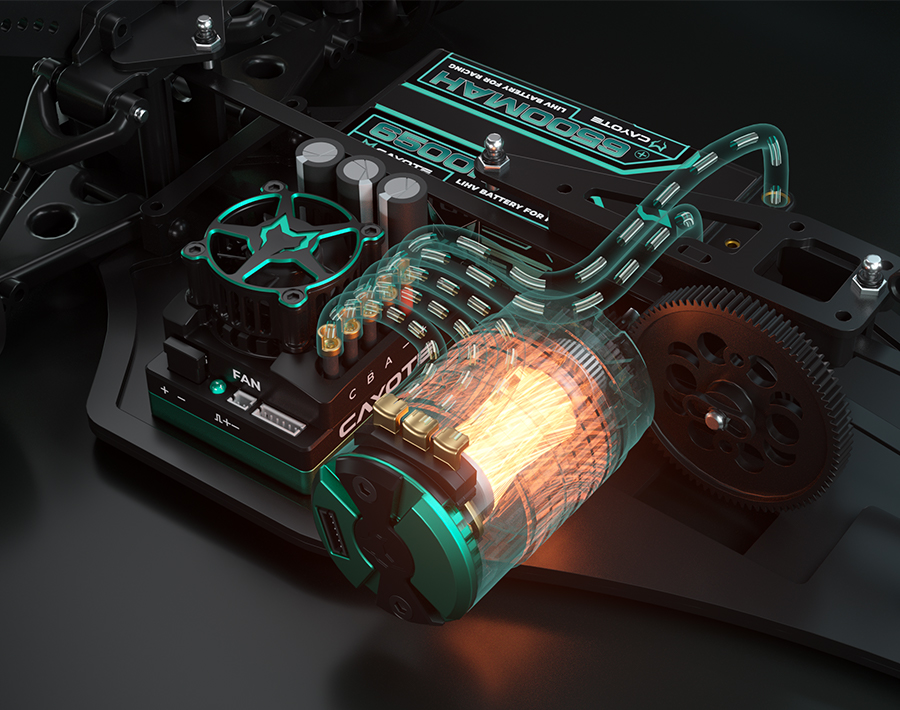

Unleash Ultimate Performance

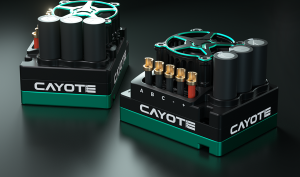

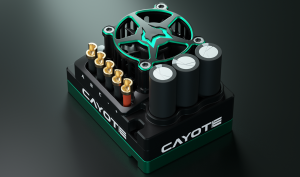

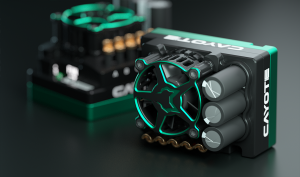

Cayote Crest 8 ESC delivers high performance and reliable current transmission, ensuring your RC vehicles run smoothly and efficiently. This ESC features an advanced cooling system and a variety of functions, combining smart technology with user-friendly operation. Pair it with Cayote motor and battery for best performance.
Product Core Tech
Increased power output and optimized motor efficiency.
Track ESC’s performance, lets you make informed decisions.
Supports various power and drive modes.
FORCE BE UNIFIED
Crest 8
Brushless
1/8 ESC
Crest 8
Unleash Ultimate Performance
Cayote Crest 8 ESC delivers high performance and reliable current transmission, ensuring your RC vehicles run smoothly and efficiently. This ESC features an advanced cooling system and a variety of functions, combining smart technology with user-friendly operation. Pair it with Cayote motor and battery for best performance.
Product Core Tech
Super Large 48-degree Boost & Turbo Timing
Increased power output and optimized motor efficiency.
Offline Data Recording
Track ESC’s performance, lets you make informed decisions.
Over 33 Adjustable Parameters
Supports various power and drive modes.
FORCE BE UNIFIED

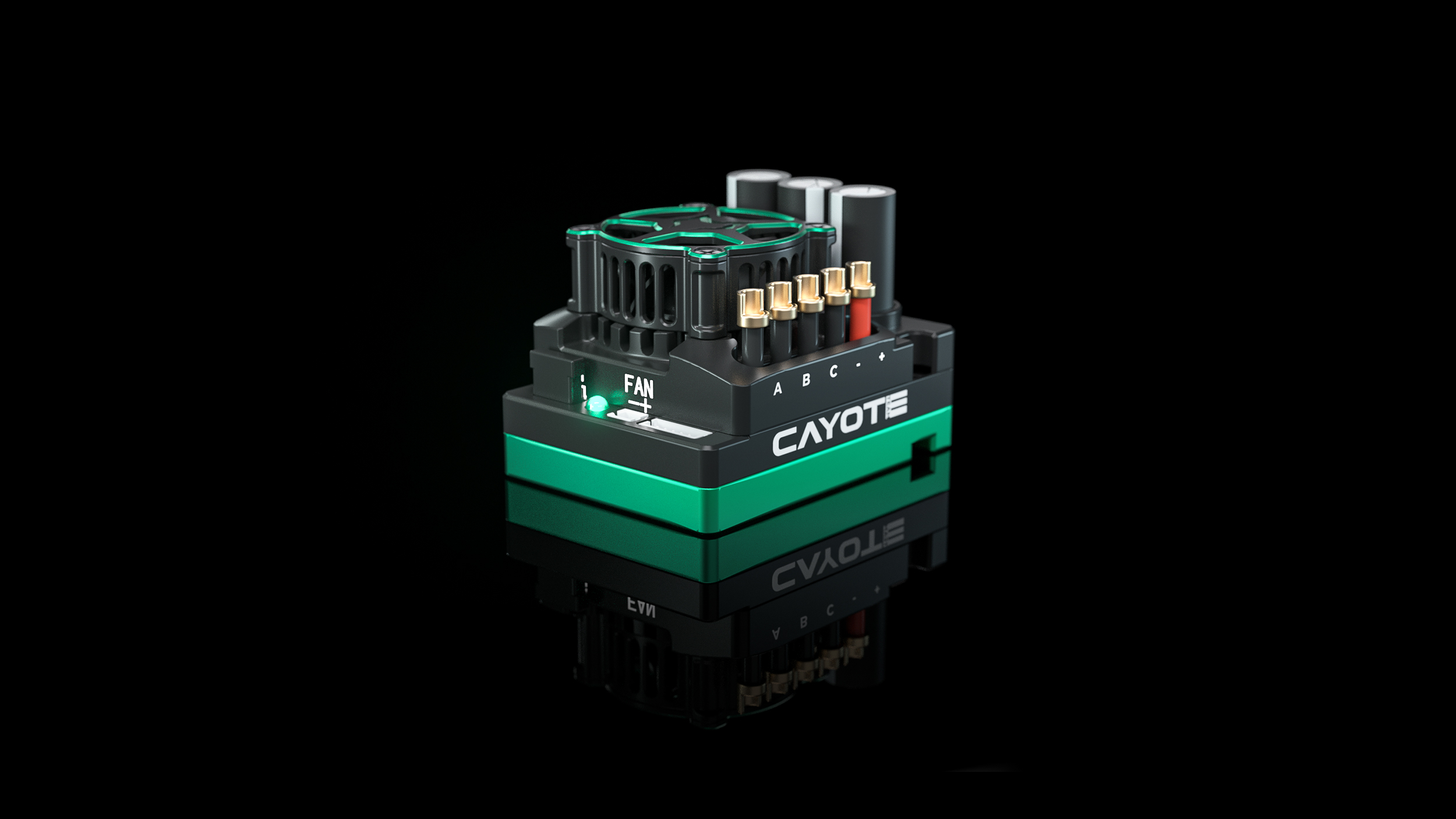

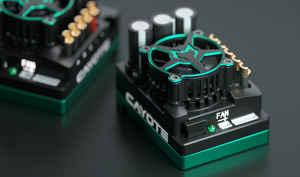

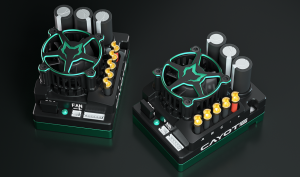

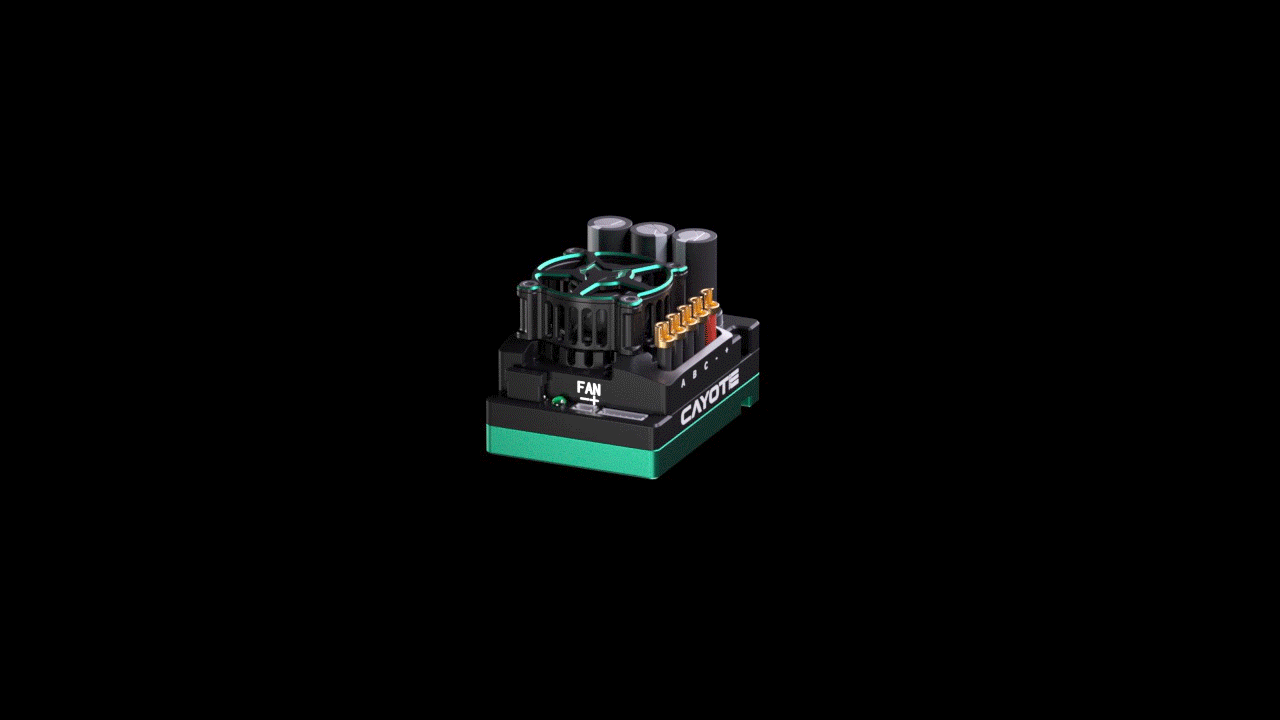

Crest 8 ESC
Product Features
Built-in Super Switching Mode BEC
Support of 6V/7.4V adjustable BEC to adapt to various high power BEC.
Built-in Professional Reversing Shutdown
Only enabled in forward with brake and forward and reverse with brake modes.
Multiple Protection Functions
Low voltage protection, ESC and motor overheat protection.

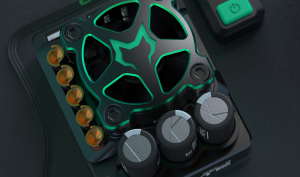

Crest 8 ESC
Specifications
- Scale: 1/8
- Mode: Sensor/Sensorless
- Continuous Current: 200A
- Peak Current: 1080A
- Battery: 2-4S Lipo
- BEC Output Voltage: 6.0/7.4V
- BEC Output Current: 8A Cont. / 12A Peak
- Firmware Upgrade: Supported
- Data Recording: Extreme value, Real-time Data
- Size: 56.8×41.6x40mm
- Weight: 122g
Basic Information
Compatibility
- Motor: 4268/4274≤3000KV with 4S Lipo
- 1/8th Vehicle: Buggy/Truck(Truggy)/Etc.
- 1/8th Vehicle: Short Truck/Big Foot/Etc.
Wiring and Cooling
- Output Wires: Black-10AWG-180MMx3
- Input Wires: Red-13AWG-180MMx1, Black:-13AWG-180MM
- Cooling Fan: 30 x 30 x 10 mm, 5-8.4V BEC
ESC Programming Via
- Xlink Program Box Compatible
- B-Tune Connect (Optional)
- Internal Program (Port)(APP Control)
