Various Preset Modes

The Team Cayote CREST RS-120 ESC highlights various preset modes simplifying racing demands:
Stock Racing Blinky Mode: complying with the no-advance timing blinking protocols set by various organizations or events.
1/10 Off-Road Mode: Tailored for 1/10 off-road/truck racing and any other off-road applications.
1/10 On-Road Mode: Optimized for 1/10 on-road racing, ensuring maximum but smooth power control.

1/10 Off-Road Mode: Tailored for 1/10 off-road/truck racing and any other off-road applications
1/10 On-Road Mode: Optimized for 1/10 on-road racing, ensuring maximum but smooth power control
CAYOTE RS120
Less Is More

Ultra-Light, High-Performance Speed Controller
“Featherlight”
36g (!)

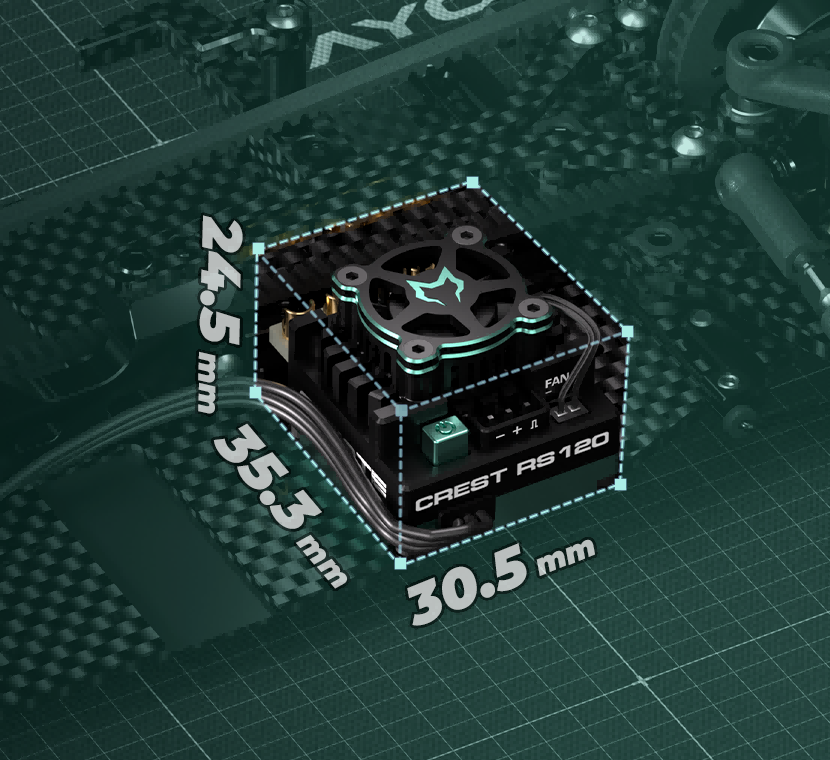

Measuring
35.3 mm (L)
30.5 mm (W)
24.5 mm (H)
The CREST RS 120 ESC offers an impressive maximum continuous output current of 120A at an astonishing size and weight. THE perfect blend of lightweight design and powerful performance, designed to elevate your racing experience to higher levels.
CAYOTE RS120
Less Is More

Ultra-Light, High-Performance Speed Controller
“Featherlight”
36g (!)
Measuring
35.3 mm (L)
30.5 mm (W)
24.5 mm (H)
The CREST RS 120 ESC offers an impressive maximum continuous output current of 120A at an astonishing size and weight. THE perfect blend of lightweight design and powerful performance, designed to elevate your racing experience to higher levels.

Maintaining 98% efficiency
Innovative ultra-thin, windowed cooling N-MOS tech







Limiting


Multiple Protection Features
Engineered for high-performance RC applications to ensure reliable, safe, and consistent operation under extreme conditions.

Low VoltageProtection

Stall Protection

Over Temperature Protection

Polarity Protection
Prevents damage to the ESC or battery caused by incorrect polarity connections.

Built-in Reverse Polarity Protection

Independent Drag Brake & Brake Frequency

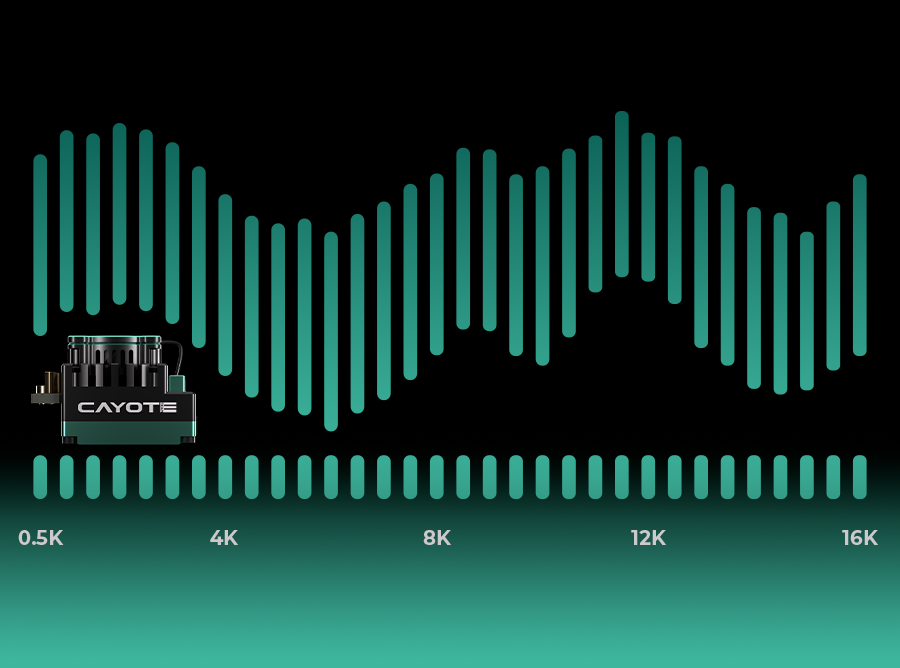

The CREST RS 120 ESC enables independent adjustment for drag brake and brake frequencies (0.5K-16K, in 0.5K increments). This allows precise control without interference between the two functions.
Lower Brake Frequency: Enhances braking performance.
By fine tuning with 0.5K increments for smoother, more precise adjustments, adapting to various grip levels.

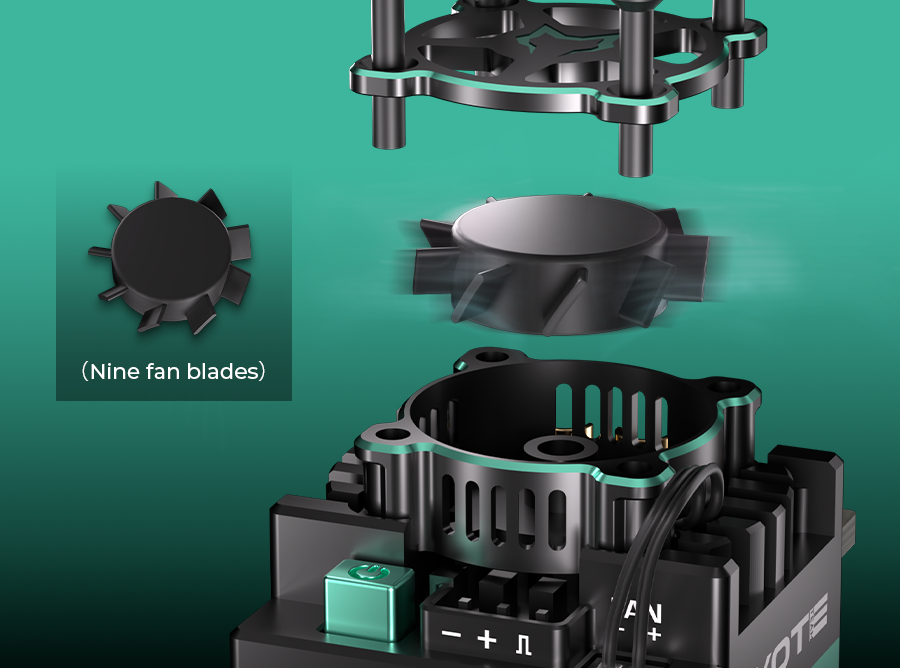

High-Performance Fan System
The CREST RS 120 is equipped with a super high-speed fan systems, providing greater airflow compared to normal systems. The CNC cut alloy frame is more durable and resistant to damage from impacts, increasing reliable cooling and enabling longer-lasting performance.
1/10 RACING ESC

Product Specifications

Continuous/Peak Current
120A / 600A

BEC Output
Ultra-stable switch V regulation 6V/7.4V;
Continuous current 5A / Peak 8A

Supported Motor Types
Sensored and Sensorless Brushless Motors

Suggested Applications
1/10th Touring Car & Buggy, 1/10th Drift, Professional Stock Class Racing

Supported Motor KV
≥10.5T 540/3650 size Motors
